Tính năng : HSK-SA-Ⅲ
◎ The best-seller of KATO TAPPERs. With a thread depth control mechanism (constant depth)
● Almighty Tapper (independent of machine tools or work materials).The settings of tension/compression can be customized before shipment.
● Synchro error compensation on tension and compression makes accurate threads.
● Model SA-Ⅲ for right-hand threading is standard.
Model SA-Ⅲ for left-hand threading is also available.
| Matching Collets |
| SA2035-Ⅲ |
TC 2035-MO |
| SA1022-Ⅲ |
TC 1022-MO |
| SA412-Ⅲ |
TC 412-MO |
| SA206-Ⅲ |
TC 206-M |

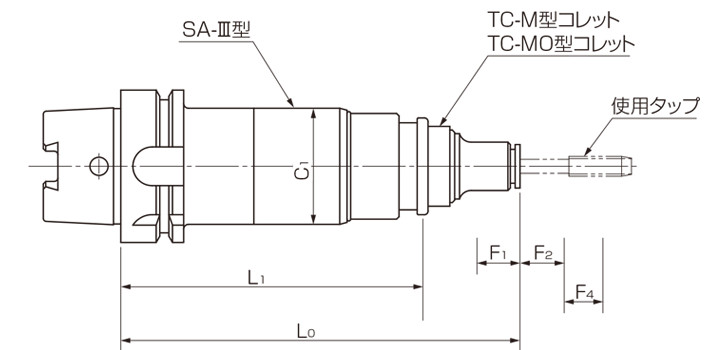

| Model |
L0
[mm] |
L1
[mm] |
C1
[mm] |
F1※
[mm] |
F2※
[mm] |
F4※
[mm] |
Capacity |
Weight
[kg] |
List Price
[JPY] |
DXF |
|
|
150 |
118.0 |
33 |
5 |
( 3) |
( 7.0) |
M 2～M 8 |
1.35 |
75,000 |
Download |
|
|
165 |
121.5 |
48 |
7 |
( 5) |
( 8.5) |
M 3～M16 |
1.65 |
Download |
|
|
225 |
160.0 |
66 |
10 |
( 6) |
(11.0) |
M 8～M27 |
2.75 |
90,000 |
Download |
|
|
285 |
200.0 |
84 |
( 7) |
(13.0) |
M18～M36 |
4.12 |
116,000 |
Download |
|
|
165 |
121.5 |
48 |
7 |
( 5) |
( 8.5) |
M 3～M16 |
3.56 |
154,000 |
Download |
|
|
225 |
160.0 |
66 |
10 |
( 6) |
(11.0) |
M 8～M27 |
5.22 |
204,000 |
Download |
|
|
265 |
180.0 |
84 |
( 7) |
(13.0) |
M18～M38 |
7.21 |
218,000 |
Download |
※ Please contact us for the availability of models marked with ★.
※ F1: Compression, F2: Tension, F4: Back Tension
※ F2 and F4 are only for reference.
※ HSK shank with holes for manual clamping is standard.
※ The coolant pipe is tiltable.
