Tính năng : DBT-SKB
◎ Only for CNC machines with a synchro function. Rigid design for high speed tapping .With an internal coolant supply through the center of the spindle
※ Please use a tap with an oil hole.
◎ Short & compact design● No tension or compression
● DBT shanks can be combined with BBT or BT spindles of machine tools.
| |
Matching Collets |
| SKB1022 |
TCA1022 |
| SKB 412 |
TCA 412 |

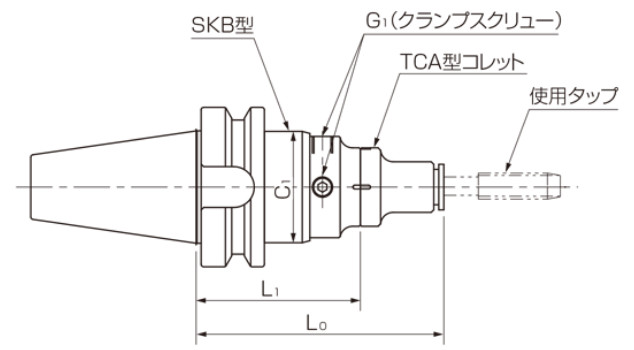

| Model |
L0※
[mm] |
L1
[mm] |
C1
[mm] |
G1
[mm] |
Capacity |
Weight
[kg] |
List Price
[JPY] |
DXF |
|
|
98 |
65 |
44 |
M 8 P1.0 |
M 2～M12 |
0.73 |
22,000 |
Download |
|
|
140 |
85 |
56 |
M10 P1.0 |
M10～M24 |
0.89 |
25,000 |
Download |
|
|
98 |
65 |
44 |
M 8 P1.0 |
M 2～M12 |
1.23 |
22,000 |
Download |
|
|
130 |
75 |
56 |
M10 P1.0 |
M10～M24 |
1.39 |
25,000 |
Download |
|
|
113 |
80 |
44 |
M 8 P1.0 |
M 2～M12 |
3.88 |
Download |
|
|
145 |
90 |
56 |
M10 P1.0 |
M10～M24 |
4.09 |
29,000 |
Download |
※ Please contact us for the availability of models marked with ★.
※ L0 should only be considered for Model TCA-S. When using other models, L0 should be calculated as L1+H1.
