Tính năng : BT-SA-Ⅲ
◎ The best-seller of KATO TAPPERs . With a thread depth control mechanism (constant depth)
● Almighty Tapper (independent of machine tools or work materials). The settings of tension/compression can be customized before shipment.
● Synchro error compensation on tension and compression makes accurate threads.
● Model SA-Ⅲ for right-hand threading is standard.
Model SA-Ⅲ for left-hand threading is also available.
| Matching Collets |
| SA206-Ⅲ |
TC206-M |
| SA412-Ⅲ |
TC412-MO |
| SA1022-Ⅲ |
TC1022-MO |
| SA2035-Ⅲ |
TC2035-MO |
| SA3050-Ⅲ |
TC3050-MO |
| SA50100-Ⅲ |
TC50100-M |

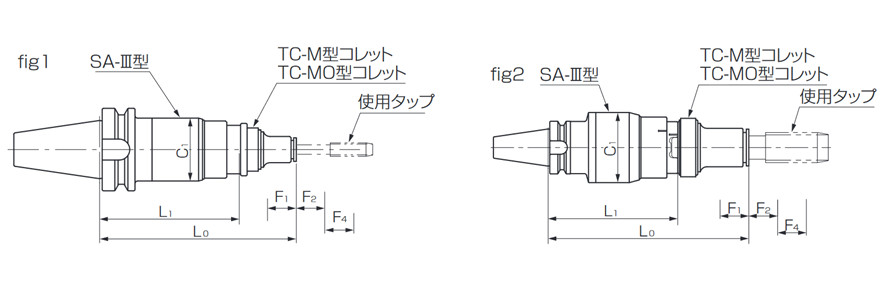

| fig |
Model |
L0
[mm] |
L1
[mm] |
C1
[mm] |
F1
[mm] |
F2
[mm] |
F4
[mm] |
Capacity |
Weight
[kg] |
List Price
[JPY] |
DXF |
| 1 |
BT30-SA 206-Ⅲ |
120.0 |
88.0 |
33 |
5 |
( 3) |
( 7.0) |
M 2～M 8 |
0.64 |
63,000 |
Download |
| BT30-SA 412-Ⅲ |
150.0 |
106.5 |
48 |
7 |
( 5) |
( 8.5) |
M 3～M 16 |
1.14 |
Download |
| BT40-SA 206-Ⅲ |
120.0 |
88.0 |
33 |
5 |
( 3) |
( 7.0) |
M 2～M 8 |
1.20 |
Download |
| BT40-SA 412-Ⅲ |
150.0 |
106.5 |
48 |
7 |
( 5) |
( 8.5) |
M 3～M 16 |
1.68 |
Download |
| BT40-SA 1022-Ⅲ |
195.0 |
130.0 |
66 |
10 |
( 6) |
(11.0) |
M 8～M 27 |
2.62 |
77,000 |
Download |
| 2 |
BT40-SA 2035-Ⅲ |
240.0 |
155.0 |
84 |
( 7) |
(13.0) |
M18～M 38 |
3.91 |
104,000 |
Download |
| 1 |
BT50-SA 206-Ⅲ |
150.0 |
118.0 |
33 |
5 |
( 3) |
( 7.0) |
M 2～M 8 |
3.98 |
75,000 |
Download |
| BT50-SA 412-Ⅲ |
106.5 |
48 |
7 |
( 5) |
( 8.5) |
M 3～M 16 |
4.17 |
Download |
| BT50-SA 1022-Ⅲ |
195.0 |
130.0 |
66 |
10 |
( 6) |
(11.0) |
M 8～M 27 |
5.01 |
86,000 |
Download |
| 2 |
BT50-SA 2035-Ⅲ |
225.0 |
140.0 |
84 |
10 |
( 7) |
(13.0) |
M18～M 38 |
5.83 |
111,000 |
Download |
| BT50-SA 3050-Ⅲ |
285.0 |
185.0 |
104 |
15 |
( 8) |
(14.0) |
M27～M 56 |
8.60 |
167,000 |
Download |
| BT50-SA50100-Ⅲ |
375.0 |
245.0 |
132 |
25 |
(20) |
( 6.0) |
M50～M100 |
15.90 |
338,000 |
Download |
※ F1: Compression, F2: Tension, F4: Back Tension
※ F2 and F4 are only for reference.
