Tính năng : BT-SA-ⅡS
◎The shortest design among the tappers for Machining Centers
●The short design is suitable for the process in limited space such as 5-face Machining Centers or turning centers.
●Synchro error compensation on tension and compression
| Matching Collets |
| SA 412-IIS |
TC 412-MO |
| SA1022-IIS |
TC1022-MO |
| SA2035-IIS |
TC2035-MO |

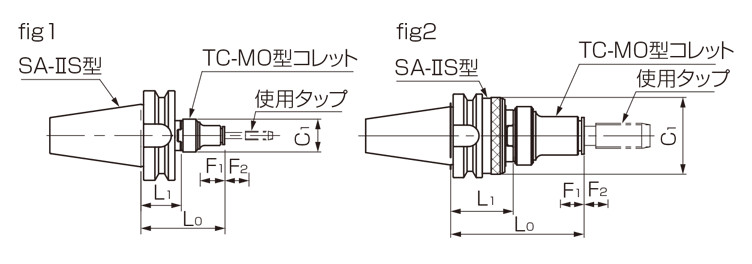

| fig |
Model |
L0
[mm] |
L1
[mm] |
C1
[mm] |
F1※
[mm] |
F2※
[mm] |
Capacity |
Weight
[kg] |
List Price
[JPY] |
DXF |
| 1 |
BT50-SA 412-ⅡS |
84 |
40.5 |
33 |
6 |
8 |
M 3～M16 |
3.4 |
75,000 |
Download |
| BT50-SA1022-ⅡS |
123 |
58.0 |
50 |
8 |
M 8～M27 |
3.5 |
86,000 |
Download |
| 2 |
BT50-SA2035-ⅡS |
160 |
75.0 |
92 |
M18～M38 |
4.4 |
111,000 |
Download |
※ F1: Compression, F2: Tension
