| Model | Giá | Số lượng | |
|---|---|---|---|

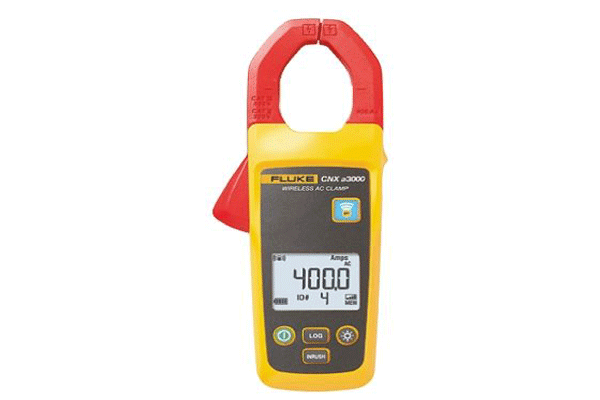

| Đồng hồ vạn năng Fluke CNX a3000 AC | 0 | Đặt mua |
| Specifications | |
| Range | 400.0 A |
| Resolution | 0.1 A |
| Accuracy | 400.0 A: 2 % ± 5 digits (10 Hz to 100 Hz), 2.5 % ± 5 digits (100 Hz to 500 Hz) |
| Inrush | Max displayed reading: 999.9A |
| Crest factor (50 Hz/60 Hz) | 3 at 500 A, 2.5 at 600 A, 1.42 at 1000 A, add 2 % for C.F. > 2 |
| LCD w/backlight | 3½ digits |
| Log rate/interval | 1 sec minimum/adjustable by PC |
| Battery type | 2 AA, NEDA 15 A, IEC LR6 |
| Battery life | 400 hours |
| Memory | Record up to 65,000 readings |
| Unbound listen interval | 5 seconds |
| RF communications | 2.4 GHZ ISM Band |
| RF communication range | 20 Meters |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -40 °C to +60 °C |
| Operating humidity | 90 % at 35 °C, 75 % at 40 °C, 45 % at 50 °C |
| EMC | EN 61326-1:2006 |
| Safety compliance | EN/IEC 61010-1-030:2010 to 600 V Measurement Category (CAT) III EN/IEC 61010-2-030:2010 EN/IEC 61010-032:2002 |
| Pollution degree | 2 |
| Temperature coefficient | Add 0.1 x (specified accuracy)/°C (< 18 °C or > 28 °C) |
| Safety rating | CAT III 600 V |
| Certifications | CSA, FCC T68-FWCS IC:6627A-FWCS |
| Ingress Protection (IP) rating | IP42 |
| Size (HxWxD) | 20.3 cm x 7.49 cm x 3.56 cm (8 in x 2.95 in x 1.4 in) |
| Weight | .22 kg (8 oz) |
| Jaw opening | 34 mm (1.33 in) |
