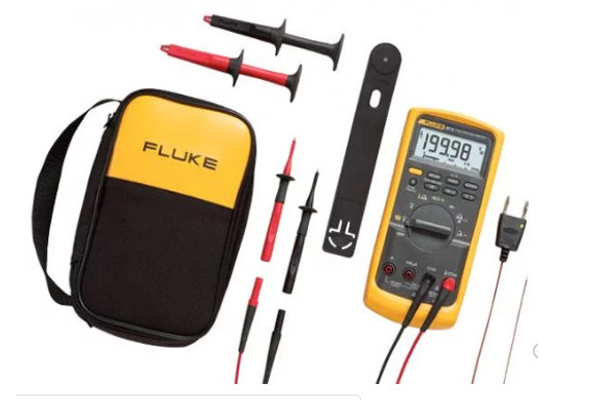

Thông số kỹ thuật: Fluke 87V/E2 Industrial Electrician Combo Kit
| Specifications |
| Voltage DC |
Maximum Voltage |
1000 V |
| Accuracy |
±(0.05% + 1) |
| Maximum Resolution |
10 µV |
| Voltage AC |
Maximum Voltage |
1000 V |
| Accuracy |
±(0.7% + 2) True RMS |
| AC Bandwidth |
20 kHz with low pass filter; 3 db @ 1 kHz |
| Maximum Resolution |
0.1 mV |
| Current DC |
Maximum Amps |
10 A (20 A for 30 seconds maximum) |
| Amps Accuracy |
±(0.2% + 2) |
| Maximum Resolution |
0.01 µA |
| Current AC |
Maximum Amps |
10 A (20 A for 30 seconds maximum) |
| Amps Accuracy |
±(1.0% + 2) True RMS |
| Maximum Resolution |
0.1 µA |
| Resistance |
Maximum Resistance |
50 MΩ |
| Accuracy |
±(0.2% + 1) |
| Maximum Resolution |
0.1Ω |
| Capacitance |
Maximum Capacitance |
9,999 µF |
| Accuracy |
±(1% + 2) |
| Maximum Resolution |
0.01 nF |
| Frequency |
Maximum Frequency |
200 kHz |
| Accuracy |
±(0.005% + 1) |
| Maximum Resolution |
0.01 Hz |
| Duty Cycle |
Maximum Duty Cycle |
99.9% |
| Accuracy |
±(0.2% per khz +0.1%) |
| Maximum Resolution |
0.1% |
| Temperature Measurement |
-200.0°C - 1090°C
-328.0°F - 1994.0°F
excluding probe |
| 80 BK Temperature Probe |
-40.0°C - 260°C
-40.0°F - 500°F, 2.2°C or 2% whichever is greater |
| Conductance |
Maximum Conductance |
60.00 nS |
| Accuracy |
±(1.0% + 10) |
| Maximum Resolution |
0.01 nS |
| Diode |
Range |
3 V |
| Resolution |
1 mV |
| Accuracy |
±(2% + 1) |
| Duty Cycle Range |
Accuracy |
Within ±(02% per kHz +0.1%) |
