| Model |

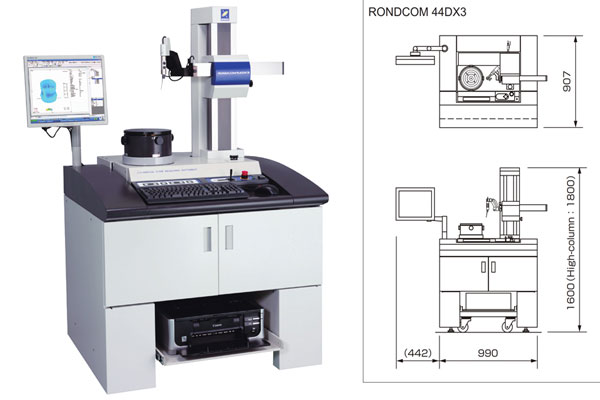

RONDCOM 44DX3 |
| |
High-column |
| Measuring range |
Max. measuring diameter |
Outer diameterФ300mm, Inner diameterФ360mm |
| Left/right feed (R-axis) |
180mm |
| Up/down feed (Z-axis) |
300mm |
500mm |
| Max. load diameter |
Ф580mm |
| Max. measuring height |
Outer diameter 300mm
Inner diameter 300mm |
Outer diameter 500mm
Inner diameter 500mm |
| Max. measuring depth(Inside height) |
150mm * |
| Rotation accuracy |
Radius direction JIS B 7451-1997 |
(0.02+3.7H/10,000)μm (H:Height from table surface to measuring point mm) |
| Axial direction JIS B 7451-1997 |
(0.02+3.7R/10,000)μm (R:Distance from table center of rotation mm) |
| Straightness accuracy |
Up/down direction (Z-axis) |
0.11μm/100mm
0.17μm/290mm |
0.11μm/100mm
0.23μm/490mm |
| Radius direction (R-axis) |
0.7μm/150mm |
| Parallelism accuracy |
Up/down direction (Z-axis) |
0.7μm/290mm |
1.04μm/490mm |
| Radius direction (R-axis) |
1.0μm/150mm |
| Indication accuracy |
Radius direction (R-axis) |
(2+L/180)μm L:Driving distance (mm) |
| Measuring speed |
Rotation speed (θ-axis) |
2 10/min (Driving speed:Max 20/min) |
| Up/down speed (Z-axis) |
0.5 6mm/s (Driving speed:Max 50mm/s) |
| Radius speed (R-axis) |
0.5 6mm/s (Driving speed:Max 25mm/s) |
| Measuring range |
±1000μm, ±200μm |
| Dimensions and weight |
Power source(voltage specification reqired) |
Single phase:AC100 240V, 50/60Hz:grounding requied |
| Air source |
Supply pressure:0.35 0.7MPa, Usage pressure:0.3MPa |
| Air consumption |
30NL/min |
| Dimensions(W×D×H mm) |
990×925×1600 |
990x925x1800 |
| Weight(kg) |
500 |
510 |
