Model
|

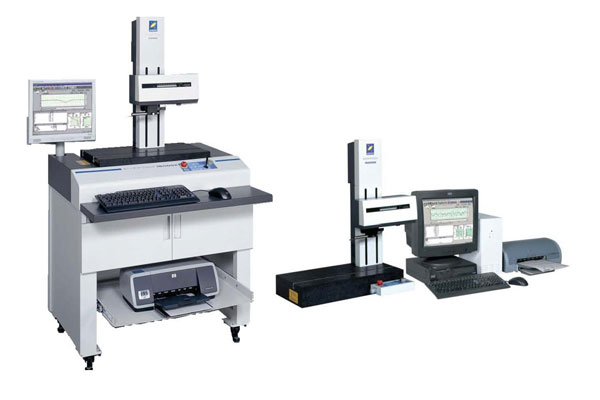

SURFCOM 1500DX/SD
|
Measuring range/
Resolution |
Z axis (vertical) |
1000μm/0.02μm – 6.4μm/0.0001μm |
| X axis (horizontal) |
100mm/0.04μm or 32,000 points (max. data items) (300,000 data
uptake points) |
| Straightness |
(0.05 + 1.0L / 1,000) μm L: Measuring length [mm] |
| Analysis items |
Standards |
Complies with JIS-2001, JIS-1994, JIS-1982, ISO-1997, ISO-1984, DIN-1990, ASME-1995 and CNOMO.X |
| Parameters |
Ra, Rq, Ry, Rp, Rv, Rc, Rz, Rmax, Rt, Rz.J, R3z, Sm, S, RΔa, RΔq, Rλa, Rλq
TILT A, Ir, Pc, Rsk, Rku, Rk, Rpk, Rvk, Mr1, Mr2, VO, K, tp, Rmr, tp2, Rmr2, Rδc
AVH, Hmax, Hmin, AREA, NCRX, R, Rx, AR, NR, CPM, SR, SAR |
| Evaluation curves |
Section profile curve, roughness curve, filtered waviness curve, filtered
center line waviness curve, rolling circle waviness curve, rolling circle
center line waviness curve, DIN4776 special curve, roughness motif
curve, waviness motif curve, envelope waviness curve
|
| Surface characteristics graphs |
Load curve, amplitude distribution (ADF) curve, power graph |
| Tilt correction |
Linear correction, round surface correction, first half correction, latter
half correction, both end correction, spline curve correction
(linear, round surface and both end correction possible at arbitrary
range) |
Magnification |
Vertical magnification
(Z axis) |
Set desired value or automatic: 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K, 200K, 500K |
Horizontal magnification
(X axis) |
Set desired value or automatic: 0.1, 1, 2, 5, 10, 20, 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K |
| Type of filter |
Standard filter (2RC), phase compensation filter (2RC), phase compensation filter (Gaussian)
|
| Speed |
Column up/down speed (Z-axis) |
3 to 10 mm/s
|
| Measuring speed (X-axis) |
(texture) 0.03 to 3 mm/s, (waviness) 0.03 to 20 mm/s
|
| Movement speed (X-axis) |
0.03 to 60 mm/s |
| Detector |
Tip radius: 2μm, Material: Diamond, Measuring force: 0.75 mN
|
| Special functions |
Measuring AI |
AI function provides easy procedures, enabling beginners to make measurements.
|
| Waveform superimposition |
Waveform curve for a maximum of 10 data items can be superimposed (ideal for wear evaluation).
|
| Automatic operation |
Simplified auto mode and teaching mode enable fully automatic operation.
|
| Other Specifications |
| Power source/consumption |
Single phase AC 100V ±10% 50/60Hz, 300VA |
| Installation dimensions |
1250 (W) × 850 (D) × 1500 (H) mm |
| Weight |
Approx. 125 kg |
