Tính năng :
◎ Tapper with self-reverse mechanism only for machining centers
◎ Extends the machine's life span and reduces the cycle time
● Efficient for tapping on machine tools with large spindle motors
● Stable thread depth
● Saves electricity because there is no need to reverse the spindle
● The NC program is simple because the tap exits by 1x speed.
● The stop block is necessary for Model SA-RⅡ
● Available for both right-hand and left-hand threading processes.
| Tapper |
Matching Collets |
| SA1022-RⅡ |
TC1022-MO |
| SA 412-RⅡ |
TC 412-MO |
| SA 206-RⅡ |
TC 206-M |

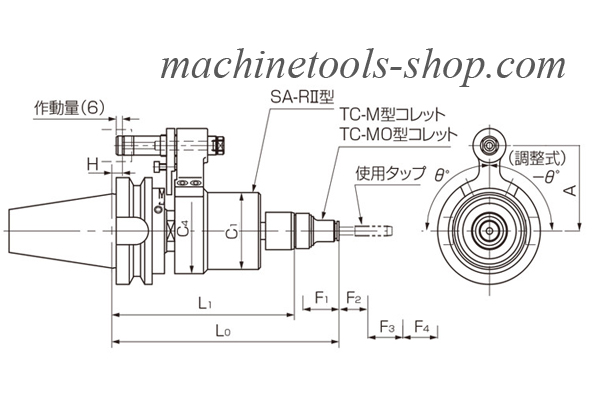

| Model |
L0
[mm] |
L1
[mm] |
C1
[mm] |
C4
[mm] |
F1※
[mm] |
F2※
[mm] |
F3※
[mm] |
F4※
[mm] |
A
[mm] |
Adjustable
Range of H |
Capacity |
Weight
[kg] |
List Price
[JPY] |
DXF |
|
|
180 |
148.0 |
56 |
66 |
4 |
( 4) |
1 |
( 5) |
65 |
-20～28 |
M 2～M 6 |
3.08 |
107,000 |
Download |
|
|
210 |
166.5 |
72 |
80 |
3 |
( 5) |
( 6) |
M 3～M12 |
4.17 |
Download |
|
|
300 |
235.0 |
90 |
90 |
( 8) |
( 8) |
-10～38 |
M 8～M22 |
6.88 |
158,000 |
Download |
|
|
190 |
158.0 |
56 |
66 |
4 |
( 4) |
( 5) |
80 |
M 2～M 6 |
5.90 |
109,000 |
Download |
|
|
220 |
176.5 |
72 |
80 |
3 |
( 5) |
( 6) |
M 3～M12 |
7.02 |
Download |
|
|
300 |
235.0 |
90 |
90 |
( 8) |
( 8) |
M 8～M22 |
9.71 |
178,000 |
Download |
※ Please contact us for the availability of models marked with ★.
※ F1: Compression, F2: Tension, F3: Neutral, F4:Back Tension
※ F2 and F4 are only for reference.
