Cần xiết lực Holex-Hoffmann 655520

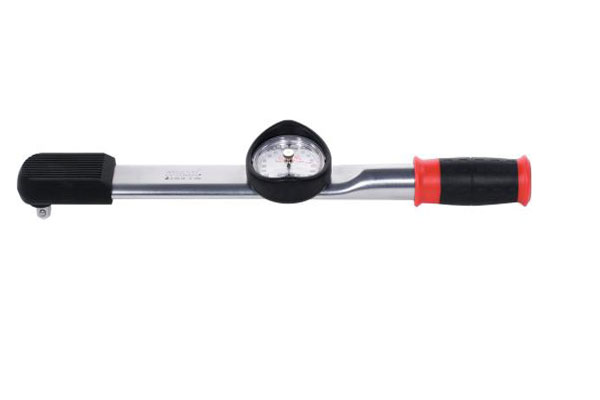

Torque wrench with dial gauge display 100 N·m
Description
Version:
One-armed; slim design with easily readable dial gauge. Body entirely of steel, chrome-plated with fixed square drive for plug-in heads.
Units of measure: N·m
Non-slip 2-component handle.
Function:
Actual torque can be read on the gauge whilst working; the final value is held by the memory pointer to be read later.
Application:
For controlled single tightening of screws and for controlled measurements.
Standard:
Tested to DIN EN ISO 6789.
Note:
The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.
Technical Data
maximum torque: 100 N·m
Release signalling: optisk
Measurement technology: mechanical
Scale graduation, 1 graduation =1 N·m
Square drive: 1/2 inch
Test certificate: Manufacturer’s test certificate
Weight: 700 g
Calibration: O3
Direction of tightening: For right and left-hand tightening
Torque measuring accuracy: ±4 %
Display: analogue
Torque range: 20 N·m - 100 N·m
Connection format: Push-through square drive (ratchet)
Setting the trigger value: Memory pointer
Feedback: visning
Measurement process: Torque
Reversible reading: Nm
Norm: DIN EN ISO 6789
Lever length without plug-in head [l1]: 271 mm
Overall length L: 380 mm
Lever length including factory calibration reference dimension [l3]: 307 mm
